K50 Hollow Shaft 15mm Through Hole Encoder 20000 Resolution Dc8 - 30v IP65

Name: K50 Hollow Shaft 15mm Through Hole Encoder 20000 Resolution Dc8 30v IP65
Brand: HENGXIANG
Price: 1 USD

Buy cheap K50 Hollow Shaft 15mm Through Hole Encoder 20000 Resolution Dc8 - 30v IP65 product

Brand Name : HENGXIANG

Model Number : K50 Series Encoder

Certification : CE,ISO9001

Place of Origin : Shanghai,China

MOQ : 1pcs encoder to start order

Price : negotiable

Payment Terms : D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc

Supply Ability : 100K pieces per year

Delivery Time : 3-5 working days for sample order, 7-15 working days for mass order

Packaging Details : each 1 piece was packed into single carton box

Keywords : through hole rotary encoder

Brand : HENGXIANG

External diameter : 50mm

Installation dimension : R27.5mm,R30mm, R34.5mm

pulse : 50ppr to 23040ppr

Output mode : Open Collector, Voltage output, Push-pull, TTL,HTL

Operating temperature : -20~+90°

package : Carton box

Contact Now

K50 rotary encoder hollow shaft 15mm through hole encoder 20000 resolution dc8-30v IP65

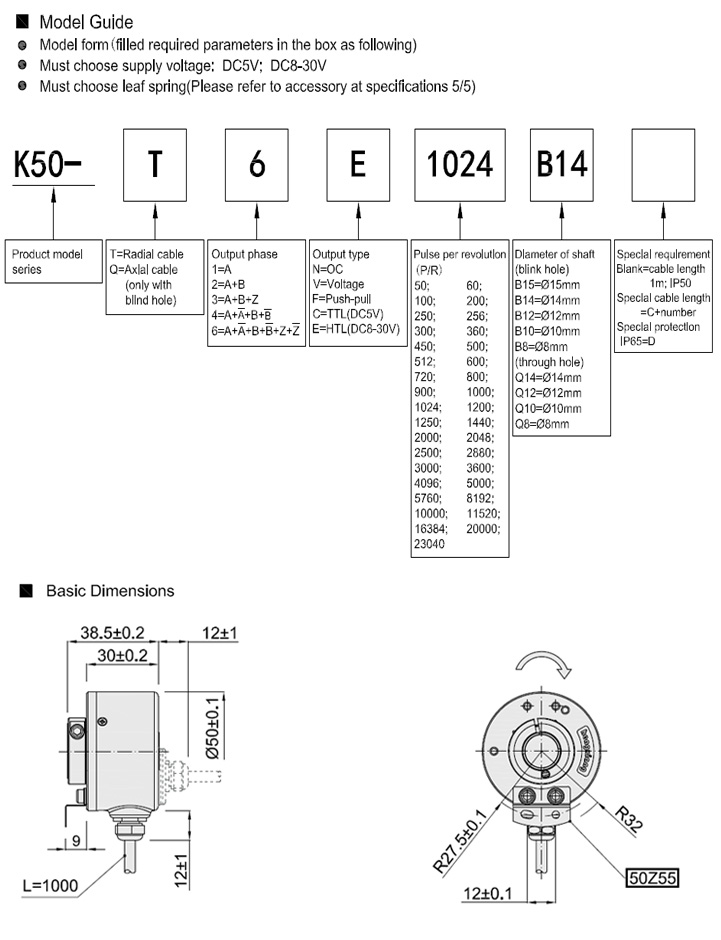

Some Model number of K50 encoder

K50-T1N20000B14

K50-Q2V23040B14

K50-T3NH16384B12

K50-Q4C1000010

K50-T6E8192B8

K50-Q1F5760B14

K50-T2N5000B12

K50-Q3VL4096B10

K50-Q1N250Q8

K50-T2F200Q6

K50-Q3VL100B8

K50 Series encoder introduction

Brand	HENGXIANG
Encoder type	Incremental encoder
External diameter	50mm
Thickness	30mm
Installation dimension	R27.5mm,R30mm, R34.5mm
Hollow shaft type	blind hole ; through hole
Hollow shaft diameter	8mm,10mm,12mm;14mm;15mm
Resolution	50;60;66;100;200;250;256;300;360;400;450;500;512;600;
	700;720;800;900;1000;1024;1200;2000;2048;2500;5000;
	8192;10000；11520；16384；20000；23040
Output phase	Phase A,B,Z A- B- Z-
Supply voltage	DC5V ; DC8-30V
Outlet type	Cable out from side
Outlet type	Cable out from back
Output mode	NPN/PNP(Open Collector Output)
	Voltage output
	Push-pull output
	Long line drive (26LS31)
	Compatible RS422
	Long line drive (RT7272)
Environmental temperature	Operating temperature: -20~+90°
Environmental temperature	Storage temperature: -25~+100°
Environmental humanity	Operating and storage: 35~85%RH (non-condensing)
Shell	Die cast aluminum
Top response Frequency	300kHz Max
Shell Material	die cast aluminum
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
GND	not connect to encoder
Shaft Material	Stainless steel

Factory Encoder Production Capability

5000 pieces per month

-------- Production Line Capacity

50000 pieces per year

--------Actual Units Produced (Previous Year)

Advantage of “HENGXIANG” encoder factory

Over 18 years encoder production experience
More than 20 years experienced engineers
Professional working team
High quality standard
Quick Response time
Utility Model Patent Certificate
Own brand and unique brand
CE certification for all models
Prompt delivery date
100% full inspection before shipment

K50 Hollow Shaft 15mm Through Hole Encoder 20000 Resolution Dc8 - 30v IP65

Applications

Petrochemical industry
Pharmaceutical industry
Food industry
Aviation and aerospace industry
Architectural decoration industry
Oil and gas industry
FFS machine
VFFS machine
Packing machinery
Capsule filling machine
Pharmaceutical machine
VVVF motor
DC motor
Stepper motor
Servo motion controller
Industrial machinery
Paper cutter
CNC machine tool
Automatic measurement
