Universal rotary encoder K38 hollow shaft encoder through hole 6.35mm totem pole output
Selling points of K38 Series
Max resolution16384ppr
External diameter 38mm
Thickness 28mm
Power supply voltage 5V or 8--30V
Axial Cable outlet or Radial Cable outlet
Sensing basic : photoelectric
Pulse per turn:50ppr to 16384ppr
Hollow shaft diameter 6mm,6.35mm, 8mm
Through hole or blind hole shaft
Protection level grade IP50 or IP65
Circuit signal output: NPN, PNP, Voltage output, Push-pull, Line driver output
Resolution(PPR):Min 50ppr, Max 16384ppr
K38 Series encoder Information

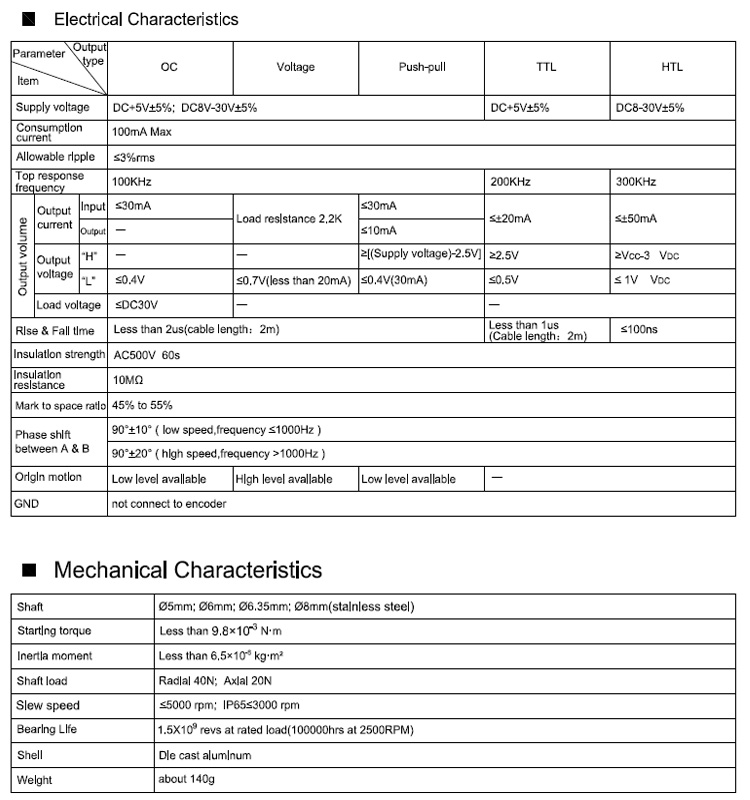

| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 38mm |
| Thickness | 38mm |
| Installation dimension | R23.5mm(spring plate 38T45) |
| Hollow shaft type | blind hole ; through hole |
| Hollow shaft diameter | 5mm,6mm,6.35mm;8mm |
| Output phase | Phase A,B,Z A- B- Z- |
| Supply voltage | DC5V ; DC8-30V |
| Outlet type | Cable out from side |
| | Cable out from back |
| Output mode | NPN/PNP(Open Collector Output) |
| | Voltage output |
| | Push-pull output |
| | Long line drive (26LS31) |
| | Compatible RS422 |
| | Long line drive (RT7272) |
| Environmental temperature | Operating temperature: -20~+90° (Non icing) |
| | Storage temperature: -25~+100° (Non icing) |
| Environmental humanity | Operating and storage: 35~85%RH (non-condensing) |
| Shell | Die cast aluminum |
| Resolution | 50;60;66;100;200;250;256;300;360;400;450;500;512;600; |
| | 700;720;800;900;1000;1024;1200;2000;2048;2500;5000; 8192;10000;16384 |
Regarding connecting Coupling
There are some applications that you may need to use a coupling to connect encoder to the motor shaft, there’re a few tips to select a coupling type
1 you need to consider the magnitude and nature of the required transmitted torque, the requirements for buffering and damping functions, and whether resonance may occur.
2 you also need to think about the degree of relative displacement of the two axis axes caused by manufacturing and assembly errors, shaft loading and thermal expansion deformation, and relative motion between components.
3 regarding the applicable dimensions and installation methods, in order to facilitate the assembly, adjustment and maintenance of the necessary operating space. For large couplings, it should be possible to disassemble the shaft without axial movement.
4. In addition, consideration should be given to the working environment, service life, and lubrication, sealing, and economic conditions. Refer to the various coupling characteristics and choose a suitable coupling type.
5. Here are some coupling part number, please carefully check before ordering.
4H4
6H6
6H8
8H8
