Z100 bearingless unique encoder ultra thin hollow shaft up to 63mm UVW signal radial type
# 1. The adventage of Z100 Series Encoder
Z100 type: Incremental encoder with external diameter 100mm
Shaft diameter : 40mm/63mm
Thickness: Ultra-thin with 16mm
Resolution/Pole : Up to 10000/16
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | bearingless encoder |
| External diameter | 100mm |
| Thickness | 16mm |
| Hollow shaft type | through hole |
| Hollow shaft diameter | 40mm;63mm |
| Resolution | 2500/8；2500/10;2500/16;5000/10;5000/16; |
| 10000/8;10000/10;10000/16 |
| Output phase | A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- |
| Supply voltage | DC5V ; DC8--30V |
| Output mode | radial cable |
| radial socket |
| line drive (26LS31) TTL |
| line drive(DC8-30V) HTL |
| Cable length | 300mm |
| rise/fall time | less than 1 us(cable length:2 meters) |
| Consumption current | 120mA MAX |
| Top response frenquency | 300KHZ |
| GND | not connect to encoder |
| Slew speed | (top response frequency/pulse)×60 |
| Environmental temperature | Operating:-20 ～+105°；storage:-25 ～+110° |
| Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Material | aluminium alloy |
| Certification | CE |
| package | Carton box |
| Net weight | About 200g (with package) |

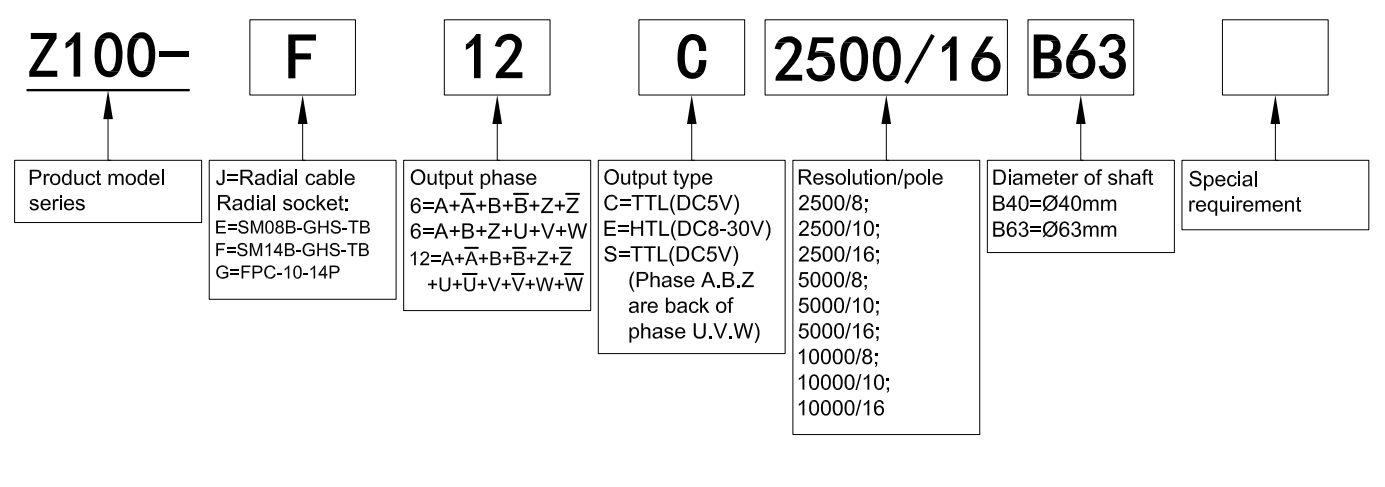

#2. Associated model number of Z100 series
....
