K35 Blind Hole Hollow Shaft Encoder 6mm High Precision

K35 logical compact configuration small size hollow shaft 6/8/10 mm outer 35mm encoder high precision low cost


-1. The parameter of K35

Items	Basic parameters
Brand	HENGXIANG
Encoder type	Incremental encoder
External diameter	35mm
Thickness	35mm

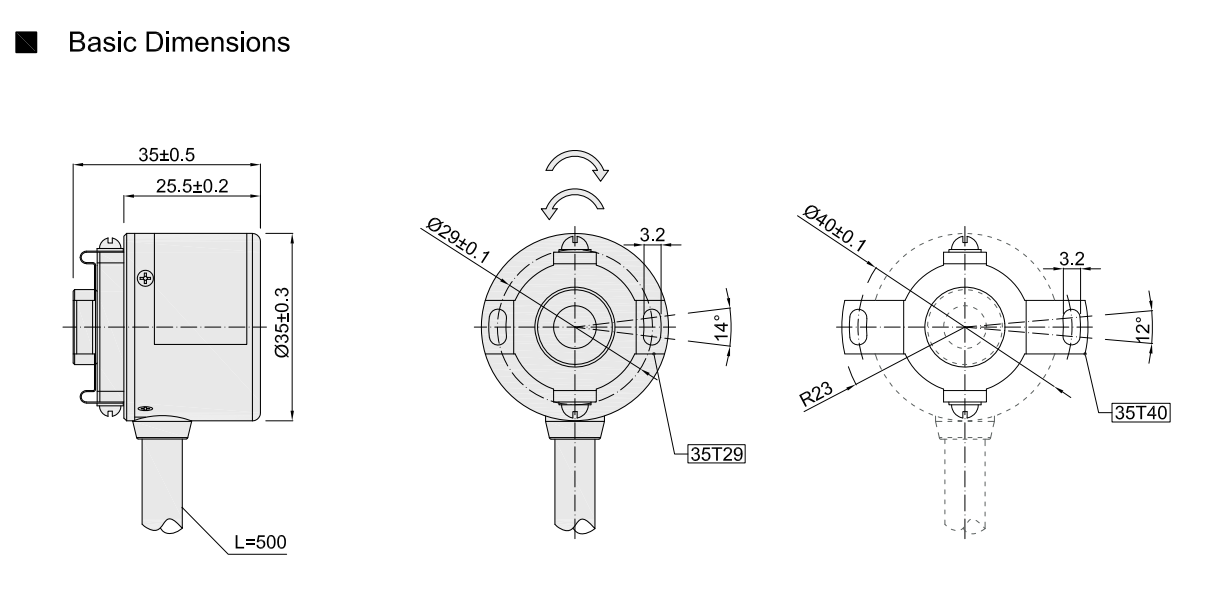

Installation dimension	40mm(spring plate 35T40); 29mm(35T29)
Hollow shaft type	blind hole
Hollow shaft diameter	6mm,8mm;10mm (Depth 15mm)
Resolution	50;60;100;200;250;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500;4096;5000
	1000/4/6/8;1024/4/6/8;2000/4/6/8;2048/4/6/8;2500/4/6/8;4096/4/6/8;5000/4/6/8
Output phase	Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
Supply voltage	DC5V & DC8--30V
Outlettype	Cable out from side
Output mode	NPN/PNP(Open Collector Output)
	Voltage output
	Push-pull output
	line drive (26LS31) TTL
	line drive(DC8-30V) HTL
	TTL(DC5V) phase ABZ are back of phase UVW
Protection grade	IP50
Cable length	500mm
Consumption current	120mA MAX
Top response frenquency	300KHZ
Allowable ripple	≤3%rms
Load Voltage	≤DC30V
Insulation strength	AC500V 60s
Insulation resistance	10MΩ
GND	not connect to encoder
Mark to Space ratio	45% to 55%
starting torque	less than 5.9x 10-3 N.m
Intertia moment	less than 1x 10-6kg.m2
Shaft load	Radial 30N; Axial 20N
Top REV	5000RPM
Bearing life	1.5x109 revs at rated load(100000hrs at 2500RPM)
Environmental temperature	Operating:-20 ～+85°；storage:-25 ～+90°
Enviromental humidity	Operating and storage: 35-85%RH(noncondensing)
Vibration(endure)	Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
Sock(endure)	490m/s2 ,11 ms three times for X,Y,Z direction individually
Shell Material	Dia cast aluminium
Certification	CE
package	Carton box
Net weight	About 100g (with package)

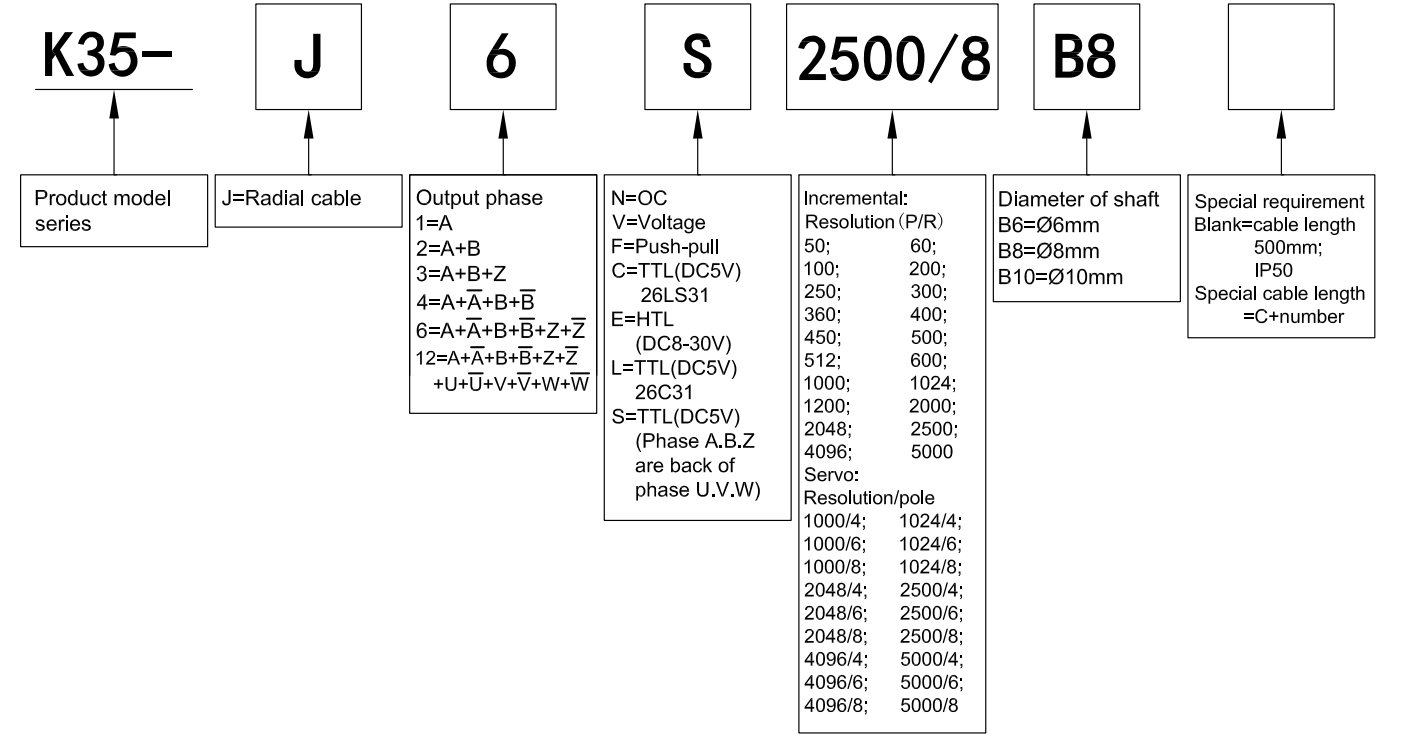

-2. Choose the parameter below to get price




....


-3. Production date
1. for 1-10 samples: 3-5 working days
2. for 20-50 mass production: 7-10 working days
3. for over 100pcs, production will be discussed with customers and ship on time

-4.Shipment

You could select the express according to your requirements if freight collector
If you do not have any courier account, we will check and find a cheapest and safety express for you.
Our factory has 30% discount with most courier company, so price could be as cheap as possible.

-5. Our History
In 1988-1998, The elder generation produced optical products in a small workshop in Dongtou District, Wenzhou, laying a solid foundation for the subsequent development of encoders and infrared optics.
In 1999, The founder was employed by Shanghai No.1 Optical Factory as a senior engineer, engaged in optical research and development, and made many scientific breakthroughs.
In 2000, The founder took the opportunity of privatization of state-owned enterprises and planned to establish a company.
In 2001, Shanghai Hengxiang Optical Electronics Co., Ltd. was formally established, and the first S38 series products are independently developed in the same year.
In 2008-2019, Formally joined Alibaba's to expand overseas markets, and obtained ISO Quality Management System Certification.
In 2010- 2014, Three invention patents ,five new utility patents and a CE-ATC certificate was obtained.
Awarded the Honor of Shanghai High-tech Enterprise and Alibaba Integrity Pioneer Enterprise.
In 2015-2020, Moved factory to Songjiang Chuangyi International Industrial Park ,Obtained QA international certification and QMS quality management system certification.
In 2021, Obtained 14 new utility patents.
-6. Technology patents & Certificates
Awarded honorable enterprise certificates such as 3 invention patents and 17 utility model patents, CE-ATC certificate, ISO Quality Management System Certification, QMS Quality Management System certificate, and pioneer enterprise
We passed the national quality management system certification with all the items tested conforming to it, thus gaining the professional production qualification.
